Iris Inference System - Overview

Iris is Lyceum's dedicated model inference service that enables users to deploy and auto-scale LLM inference workloads. It uses a queue-based, auto-scaling architecture designed for high availability and efficient resource utilization.

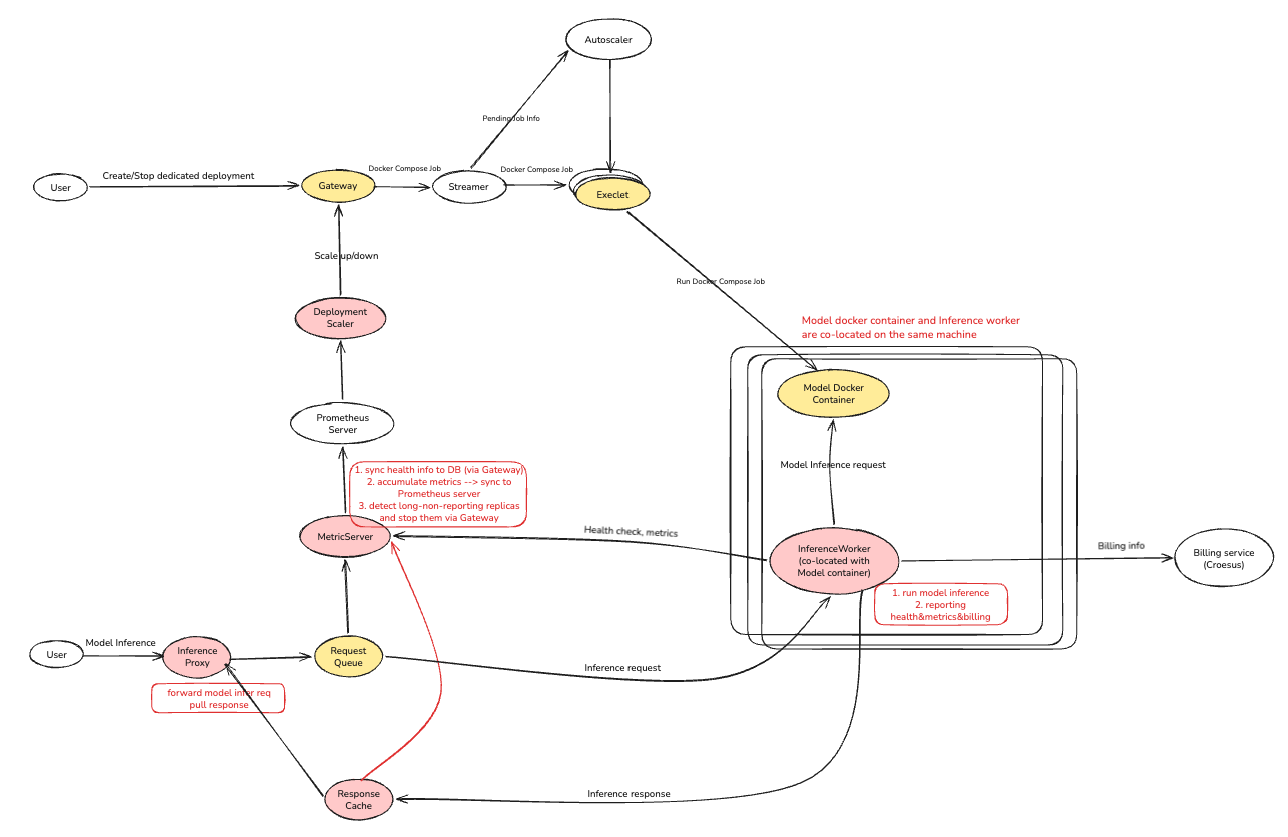

System Architecture (High Level)

Iris Architecture

System Architecture (Data Flow)

                      User / CLI
                          │
                ┌─────────▼──────────┐
                │      Gateway       │  create / stop / get / list
                └──┬──────────────┬──┘
                   │              │
        job submit │              │ meta info
                   │              │
                   ▼              ▼
               Streamer        CloudSQL
                   │
                   │
          ┌────────┴────────┐
          │  Execlet Node   │  (one per replica)
          │  ┌───────────┐  │
          │  │   Model   │  │  e.g. vLLM on port 8000
          │  │ Container │  │
          │  └─────▲─────┘  │
          │        │ HTTP   │
          │  ┌─────┴──────┐ │
          │  │ Inference  │ │  sidecar
          │  │  Worker    │ │
          │  └──┬──────┬──┘ │
          └─────┼──────┼────┘
                │      │
        consume │      │ write response
                │      │
                ▼      ▼
            RabbitMQ   Redis
                ▲      │
                │      │
        publish │      │ poll / read
                │      │
                │      ▼
          ┌─────┴──────────────┐
          │  InferenceProxy    │  sync + async modes
          └────────────────────┘
                  ▲
                  │
              User / CLI




        ┌──────────────────────────┐
        │  InferenceWorker (each)  ├──► MetricServer ──────► Prometheus (Grafana)
        └──────────┬───────────────┘         │                    │
                   │ billing                 │            DeploymentScaler
                   │                         │                    │
                   │                  health │              scale │
                   ▼                         │                    │
                Croesus                      └──────►Gateway◄─────┘

Quick Start (OpenAI SDK)

Send inference requests using the standard OpenAI Python SDK:

from openai import OpenAI

client = OpenAI(
    api_key="lk_...",                                      # from API Keys page
    base_url="https://prod.iris.lyceum.technology/v1",     # Iris proxy, NOT api.lyceum.technology
)

resp = client.chat.completions.create(
    model="<deployment_id>",
    messages=[{"role": "user", "content": "Hello"}],
)
print(resp.choices[0].message.content)

Environment	`base_url`
Development	`https://devel.iris.lyceum.technology/v1`
Integration	`https://integration.iris.lyceum.technology/v1`
Production	`https://prod.iris.lyceum.technology/v1`

No custom headers required — the model field doubles as the deployment ID, and the SDK sends the API key as Authorization: Bearer automatically.

Request Flow

Synchronous Mode (Default)

sequenceDiagram
    participant User
    participant InferenceProxy
    participant RabbitMQ
    participant InferenceWorker
    participant Model
    participant Redis

    User->>InferenceProxy: POST /v1/chat/completions<br/>(Authorization, model or X-Deployment-ID)
    InferenceProxy->>InferenceProxy: Validate auth (cache)
    InferenceProxy->>InferenceProxy: Check deployment health (cache)
    InferenceProxy->>RabbitMQ: Publish to infer_req.<deployment_id>
    InferenceProxy->>Redis: Poll infer_resp:<request_id>

    RabbitMQ->>InferenceWorker: Deliver message
    InferenceWorker->>Model: POST /v1/chat/completions
    Model-->>InferenceWorker: Response
    InferenceWorker->>Redis: Write infer_resp:<request_id>

    Redis-->>InferenceProxy: Result available
    InferenceProxy-->>User: 200 OK + result

Asynchronous Mode (X-Async: true)

sequenceDiagram
    participant User
    participant InferenceProxy
    participant RabbitMQ
    participant InferenceWorker
    participant Redis

    User->>InferenceProxy: POST /v1/chat/completions<br/>(X-Async: true)
    InferenceProxy->>Redis: Write infer_resp:<request_id> = "pending"
    InferenceProxy->>RabbitMQ: Publish to queue
    InferenceProxy-->>User: 202 Accepted<br/>{request_id}

    RabbitMQ->>InferenceWorker: Deliver message
    InferenceWorker->>InferenceWorker: Process request
    InferenceWorker->>Redis: Update infer_resp:<request_id> = result

    User->>InferenceProxy: GET /v1/chat/completions/{request_id}
    InferenceProxy->>Redis: Read infer_resp:<request_id>
    Redis-->>InferenceProxy: Result
    InferenceProxy-->>User: 200 OK + result

Components

Core Iris Components

Component	Code	Deployment	Purpose
InferenceProxy	Go `iris/inference_proxy/`	Cloud Run service behind Global HTTPS Load Balancer	User-facing inference API; authenticates requests, validates deployments, publishes to RabbitMQ, and polls Redis for results (sync/async modes)
InferenceWorker	Python `iris/inference_worker/`	Docker container on each Execlet VM (sidecar in docker-compose)	Sidecar per replica; consumes from RabbitMQ, calls model container, writes results to Redis, reports metrics and billing data
MetricServer	Go `iris/metric_server/`	Cloud Run service	Telemetry broker; receives metrics from workers, tracks replica health, exposes Prometheus `/prom` endpoint
DeploymentScaler	Go `iris/deployment_scaler/`	Cloud Run service	Auto-scaler; monitors Prometheus metrics, computes desired replica count using HPA-style logic, calls Gateway to scale up/down

Core Infrastructure Components

Component	Code	Deployment	Purpose
Gateway	Python (FastAPI) `/app/src/app/`	systemd service	Central API orchestrator; manages deployment lifecycle, database records, and replica provisioning via Streamer; exposes Iris-specific endpoints (`/inference/[create\|stop\|get\|list\|scale]`)
lyceum-cli	Python (Typer) `/app/src/lyceum-cli/`	PyPI package (`pip install lyceum-cli`)	Command-line interface; user-facing tool for managing deployments, submitting inference requests, and interacting with Gateway API
Streamer	Go `/stream_execlet/cmd/streamer/`	systemd service	Job scheduler; maintains queue of pending jobs and distributes them to available Execlet nodes based on hardware profile matching
Hydra	Go `/infra/services/hydra-autoscaler/`	systemd service	VM autoscaler; monitors Streamer's job queue and provisions VMs from cloud providers when jobs are pending
Execlet	Go `/stream_execlet/cmd/execlet/`	systemd service on each compute VM	VM daemon; maintains bidirectional gRPC connection to Streamer, executes docker-compose jobs, reports status back to Gateway via callbacks
Croesus	Go `/croesus/`	Cloud Run service	Billing service; receives token usage events from InferenceWorkers as CloudEvents and tracks usage for billing purposes

Supporting Infrastructure Components

Component	Code	Deployment	Purpose
RabbitMQ	Terraform `/infra/terraform/_modules/gcp/rabbitmq/`	GCP Compute Engine instances (VMs) with load balancer	Message broker; one queue per deployment. All replicas consume from same queue (competing consumers). Dead-letter queue (DLQ) for failed messages.
Redis	Terraform `/infra/terraform/_modules/gcp/redis/`	GCP Memorystore (managed Redis instance)	State & caching; response bus, deployment metadata cache, auth cache, replica health state
Prometheus	Terraform `/infra/terraform/grafana/`	Grafana Cloud (managed Prometheus service)	Metrics & monitoring; scrapes `/prom` from MetricServer; used by DeploymentScaler for auto-scaling decisions (p95 latency, RPS)
CloudSQL	Terraform `/infra/terraform/_modules/gcp/cloud_sql/`	GCP Cloud SQL (managed PostgreSQL service)	Database; `dedicated_deployments` and `deployment_replicas` tables; source of truth for deployment state

Key Design Principles

1. Queue-Based Request Distribution

All replicas of a deployment share a single RabbitMQ queue (infer_req.<deployment_id>), acting as competing consumers. Messages are distributed naturally by RabbitMQ based on worker availability and prefetch limits.

Benefits: - No external load balancer needed - Natural backpressure and flow control - Failed messages automatically retry via DLQ

2. Sidecar Pattern

InferenceWorker runs alongside the model container in the same docker-compose environment, communicating over the internal network (http://model:8000).

Benefits: - No network latency between worker and model - Simplified deployment (single compose file) - Health monitoring co-located with model

3. Redis Response Bus

InferenceProxy and InferenceWorker are fully decoupled. The proxy publishes requests to RabbitMQ and polls Redis for results. Workers write results to Redis without knowing which proxy instance is waiting.

Benefits: - Proxy doesn't hold connections to VMs - Workers can restart without affecting proxy - Supports both sync and async request modes

4. Multi-Tier Caching

InferenceProxy caches at multiple levels to minimize database and external API calls: - Auth cache (JWT/API key validation) - Deployment metadata cache (permanent) - Replica health cache (TTL-based: 10s when count=0, 10min when count>0)

Benefits: - Faster request processing - Reduced load on Gateway and Supabase - TTL-based staleness for health checks

5. Stateless Auto-Scaling

DeploymentScaler derives all decisions from current Prometheus metrics and Gateway state. It uses Redis only for coordination (leader election via TTL keys), not for persistent state.

Benefits: - Resilient to process restarts - Multiple scaler instances can run safely - No state synchronization issues

Deployment Lifecycle

Creation

User calls POST /api/v2/external/inference/create via Gateway (or uses lyceum-cli)
Gateway creates dedicated_deployments record in CloudSQL
Gateway seeds Redis cache with deployment metadata
Gateway renders docker-compose file (model + worker sidecar) for each min_replicas
Gateway submits jobs to Streamer
Streamer assigns jobs to Execlet nodes based on hardware profile
Execlet runs docker-compose up (vLLM + InferenceWorker)
Execlet reports progress back to Gateway via callbacks
InferenceWorker starts consuming from RabbitMQ queue
InferenceWorker reports health to MetricServer
DeploymentScaler discovers deployment and begins monitoring

Scaling

DeploymentScaler queries Prometheus for p95 latency and RPS metrics
DeploymentScaler computes HPA ratio: max(currentP95/targetP95, currentRPS/targetRPS)
DeploymentScaler calculates desired replica count (clamped to [min_replicas, max_replicas])
DeploymentScaler calls Gateway POST /api/v2/internal/inference/scale
Gateway creates new jobs (scale up) or aborts replicas (scale down)
Process repeats with 120s cooldown between actions

Deletion

User calls DELETE /api/v2/external/inference/stop via Gateway
Gateway marks deployment as "stopped" in database
Gateway deletes Redis cache keys
Gateway aborts all replica jobs via Streamer
Execlet runs docker-compose down on each node
MetricServer evicts stale instances after eviction threshold

Monitoring & Observability

Metrics (Prometheus)

All metrics are exposed by MetricServer at the /prom endpoint.

Metric	Type	Purpose
`lyceum_inference_latency_millis`	Histogram	Request latency distribution; used for p95 calculations
`lyceum_inference_requests_total`	Counter	Total requests processed; used for RPS calculations
`lyceum_inference_instance_health`	Gauge	Per-replica health status (1=healthy, 0=unhealthy)
`lyceum_inference_instance_last_report_age_seconds`	Gauge	Time since last health report from replica

Health Tracking

InferenceWorker polls model container /health every 10s
InferenceWorker sends health snapshot to MetricServer every 30s
MetricServer updates Redis with replica health status
MetricServer marks replicas unhealthy if no report for 60s (stale threshold)
MetricServer evicts replicas from Redis after 1h of being unhealthy
MetricServer reports health changes to Gateway via /report_replica_status

Logs

All components use structured logging with consistent fields:

deployment_id, replica_id, request_id for request tracing
service field for component identification
Levels: DEBUG (verbose), INFO (state changes), WARN (degradation), ERROR (failures)

Next Steps

Explanations - Deep dive into each component's design and implementation
Guides - Step-by-step instructions for deploying and testing Iris modules
